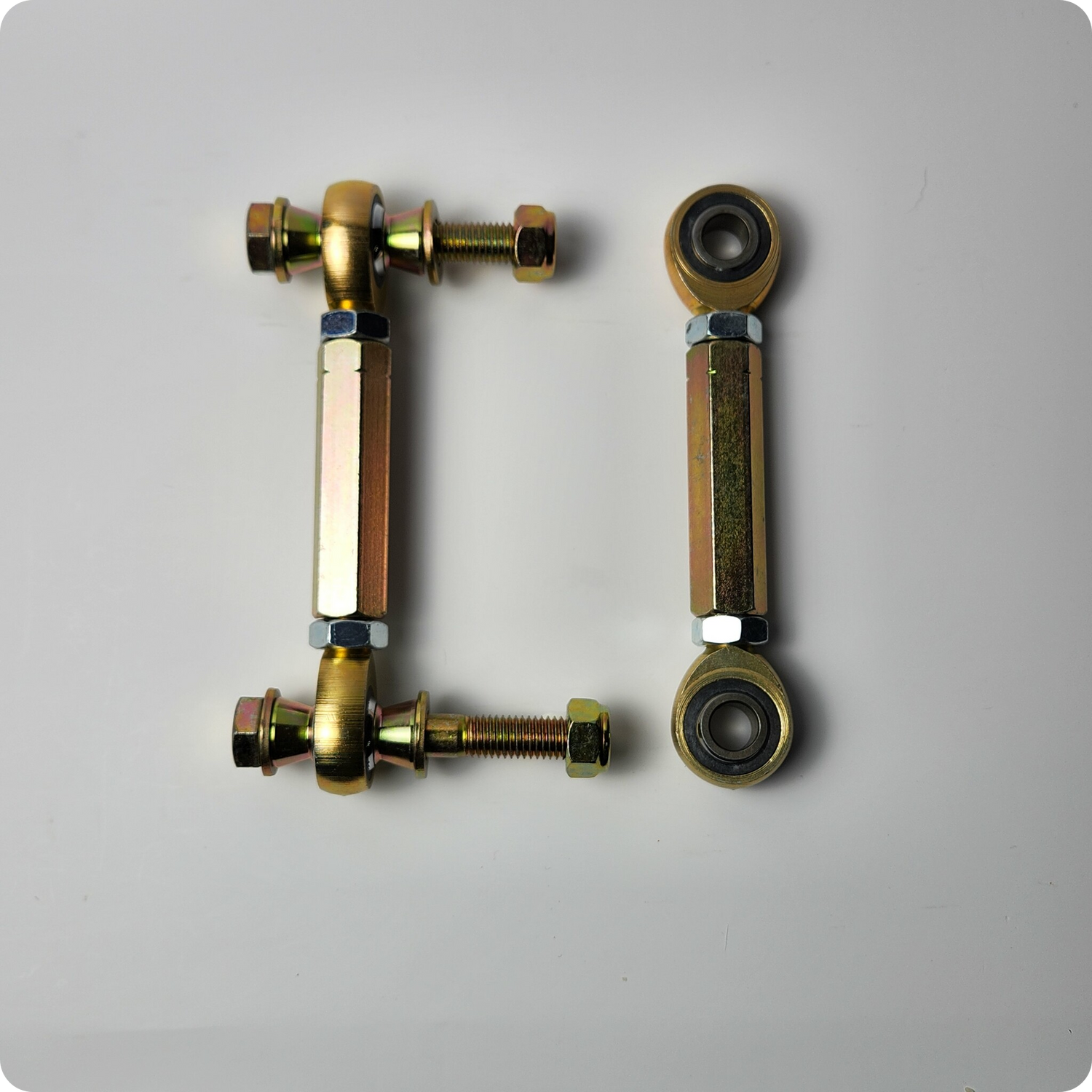

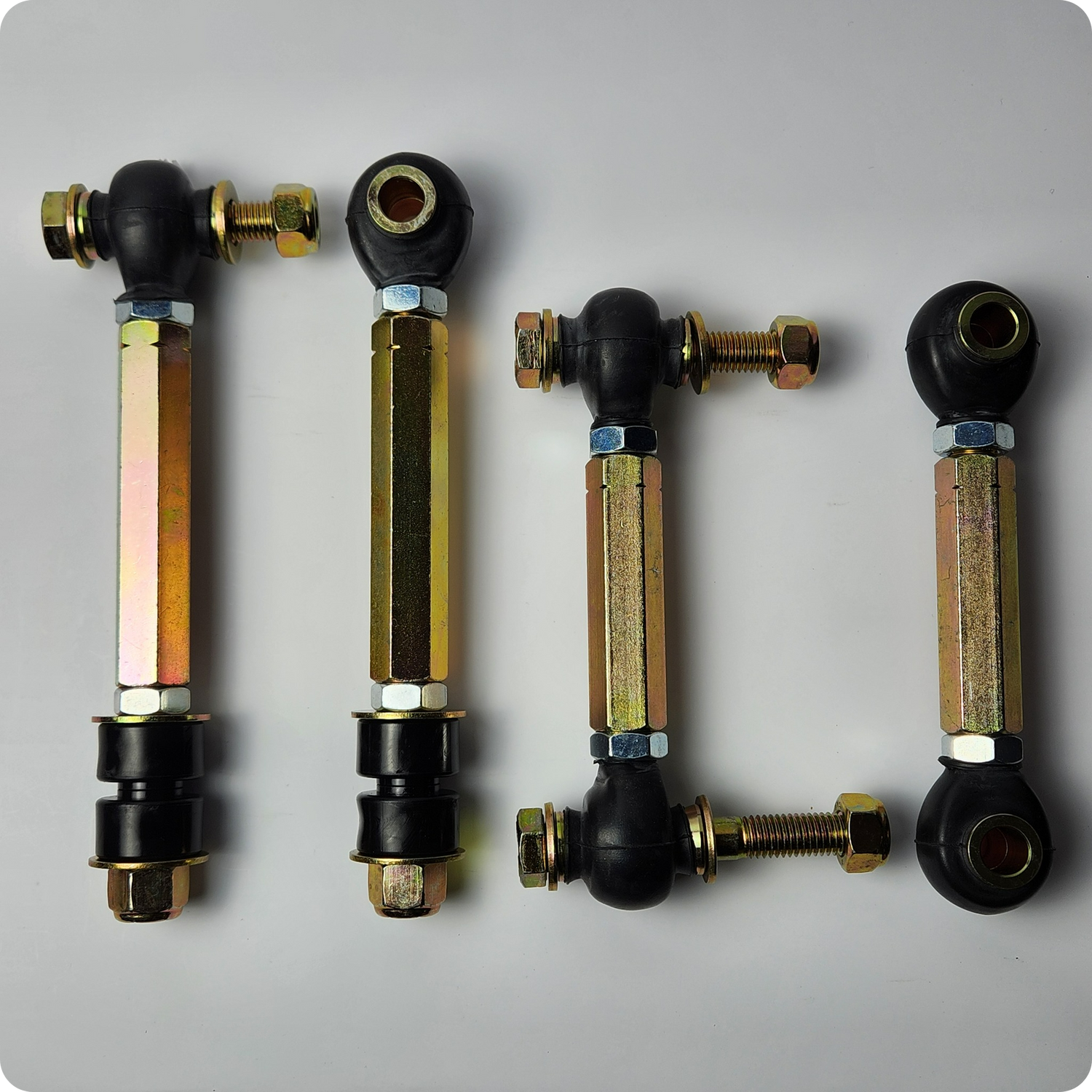

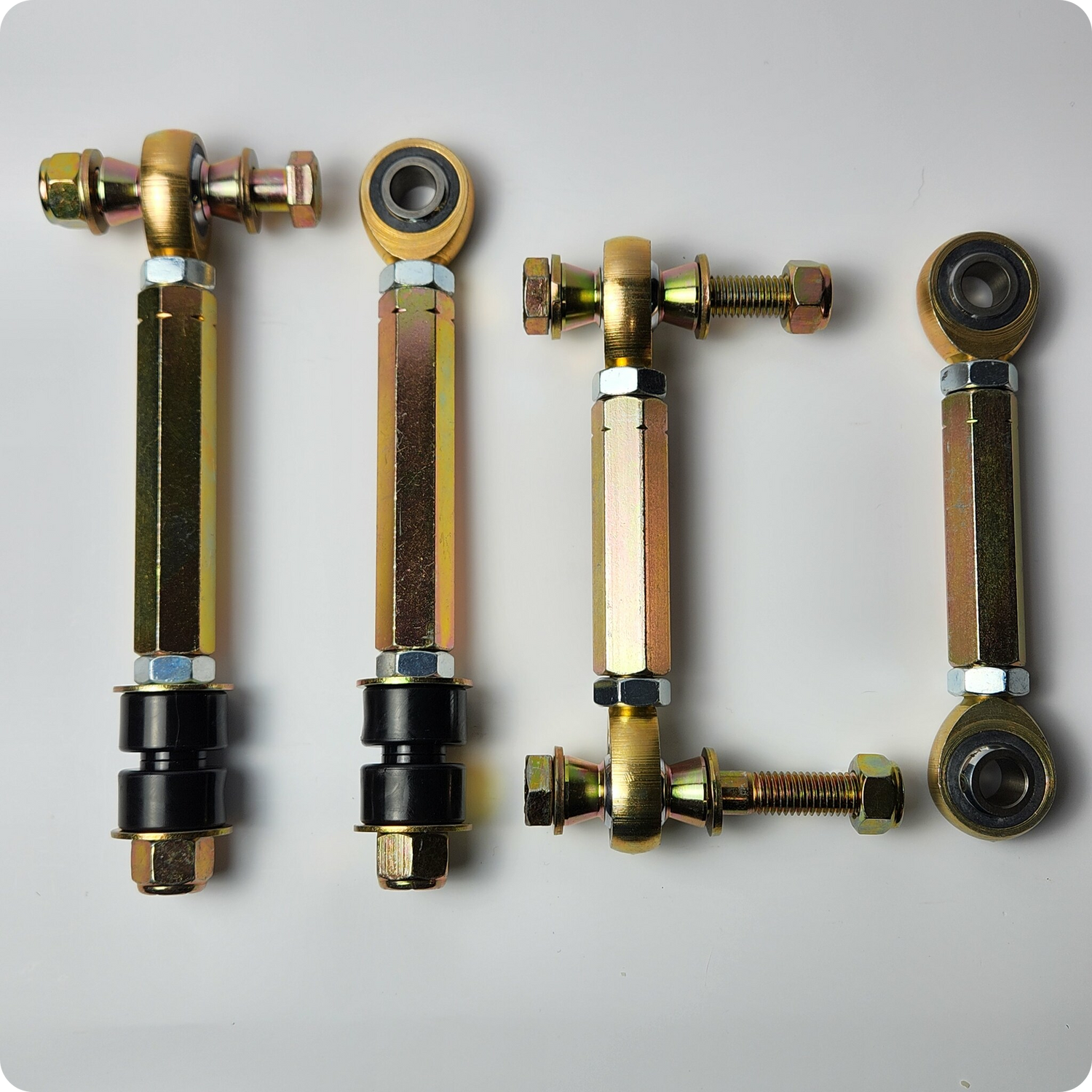

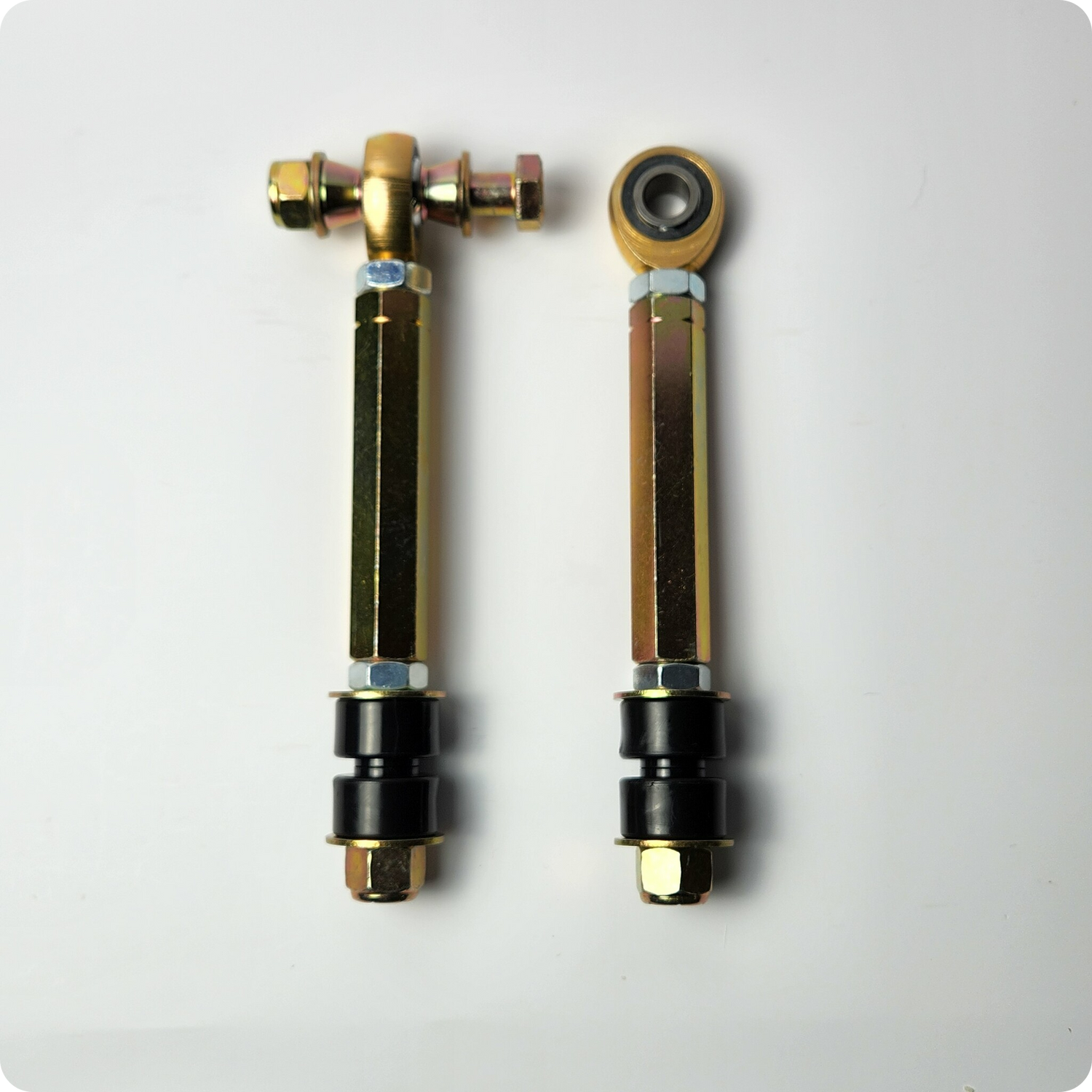

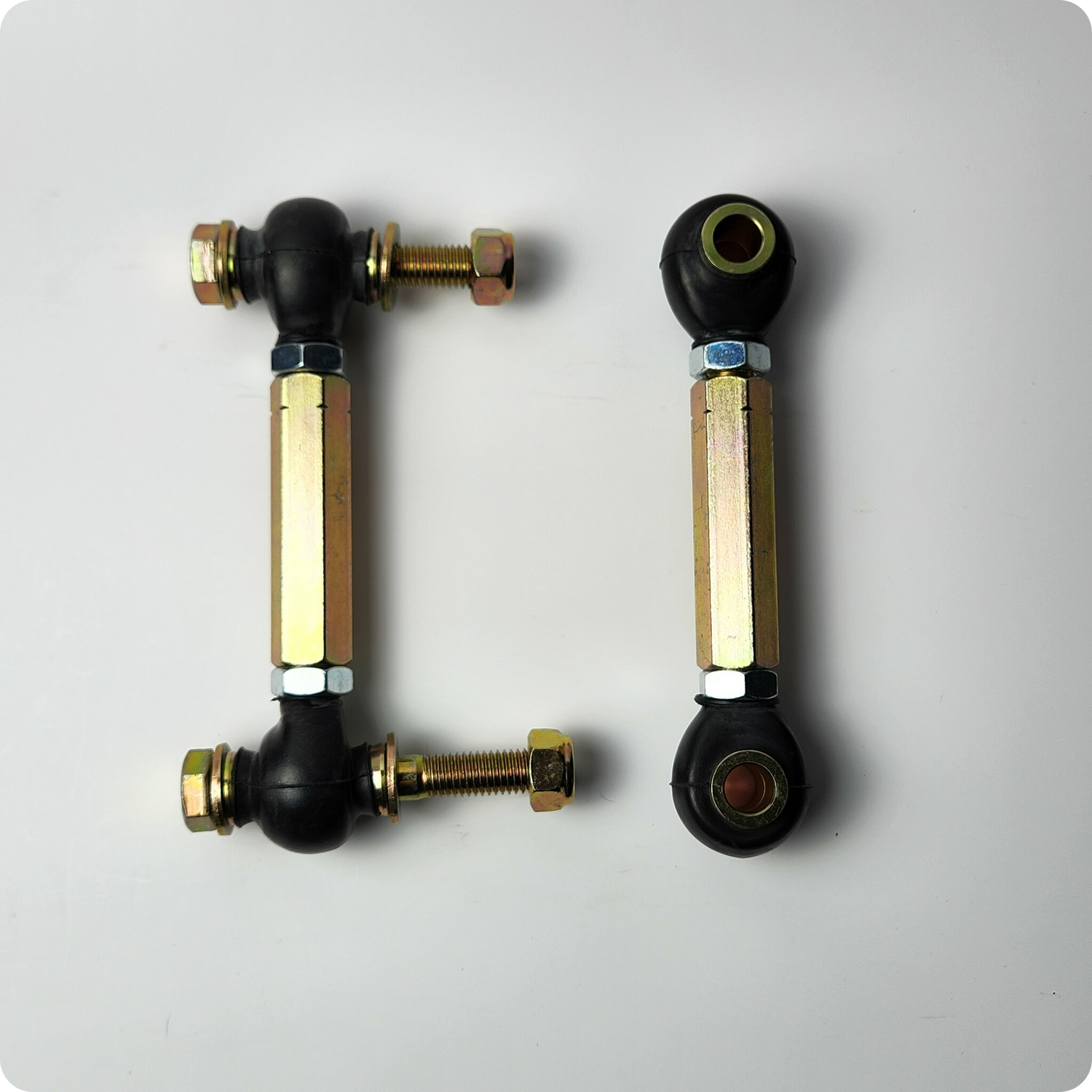

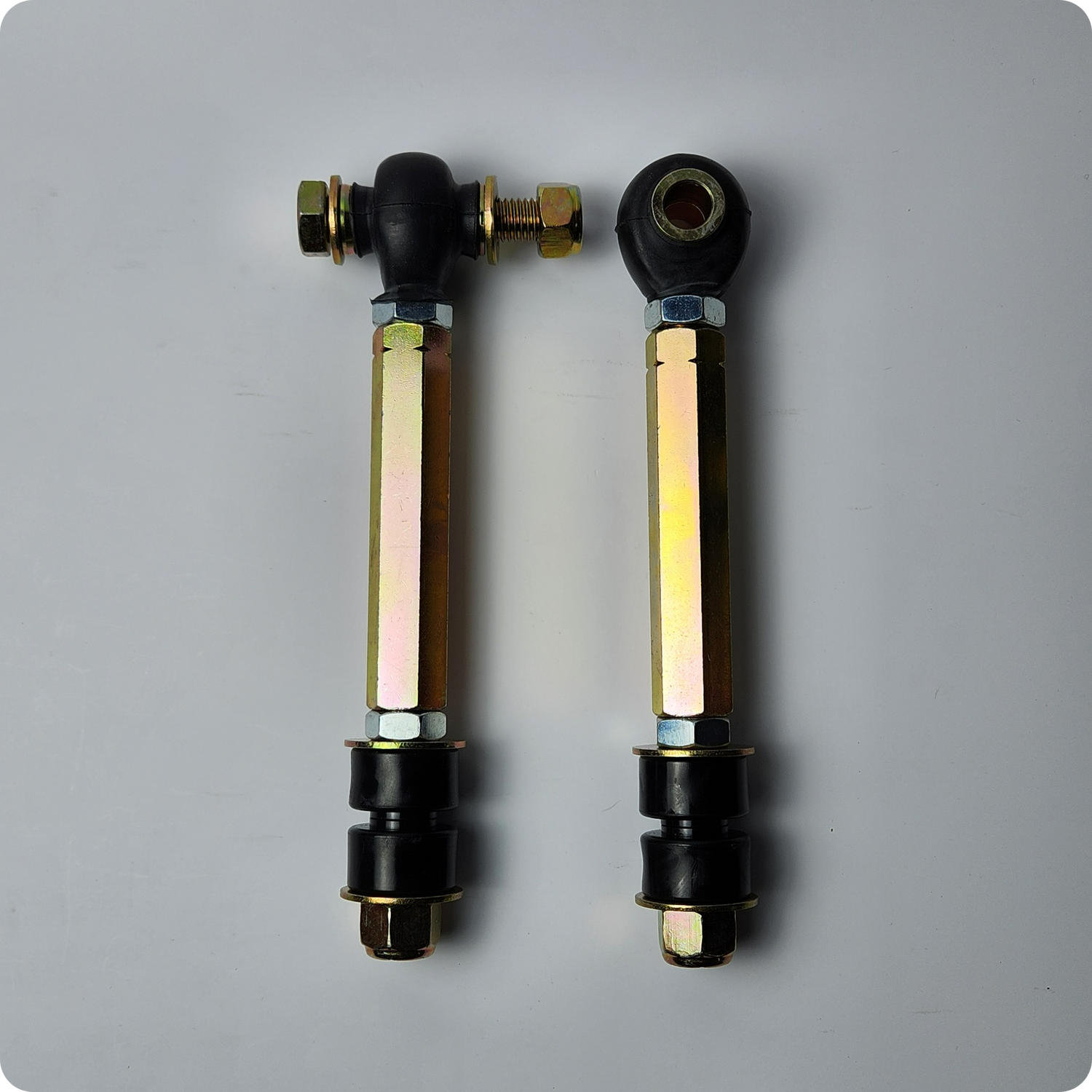

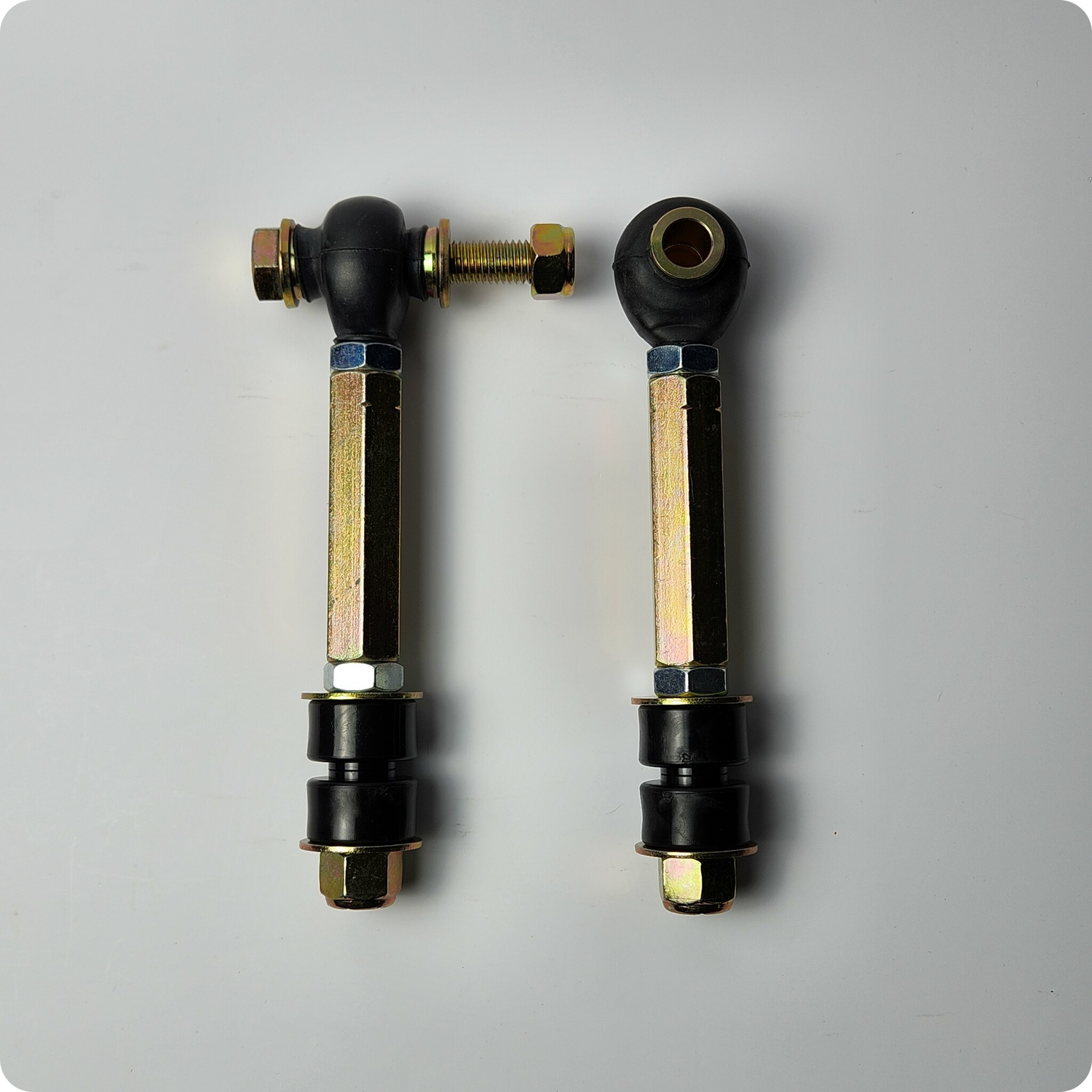

Heim Joint Sway Bar Links
Regular price $150.00
Unit price per
These heim joint links are what started it all for us.
Restore your suspension, ride quality, handling, and off road capability after lifting your Toyota by installing these custom made sway bar links!
*A sway bar relocation is recommended where applicable due to the oversized center tubes. (03+ 4runner)(FJ Cruiser)(05+ Tacoma)(GX's)*
- FK Heim Joints
- Black polyurethane bushings
- B7 Threaded studs, rated at 150,000 PSI
- Drilled hex tubes with right and left hand threads
- Chromoly heim joints w/Reinforced Nylon with PTFE races
- Grade 8 hardware
- 1" longer than OEM links
- Front double heim joint links will be OEM length
- Completely adjustable/rebuildable
*WILL NOT WORK WITH 6" DROP SUSPENSION LIFTS (Fabtech, BDS, ProComp)
*MAINTENANCE IS REQUIRED on these links. Over time dirt can enter the joint, and cause the races to dry out. To prevent premature failure of the races it is recommended that you use a PTFE dry lube like Tri-Flow Uniball lube. And yes, this is the case for joints with boots as well.
*Looking for powder coated hex tubes? Follow this link to see what we currently have available. *
*Sold in Pairs*
